Nux Verb Core Deluxe

Ambience in Motion

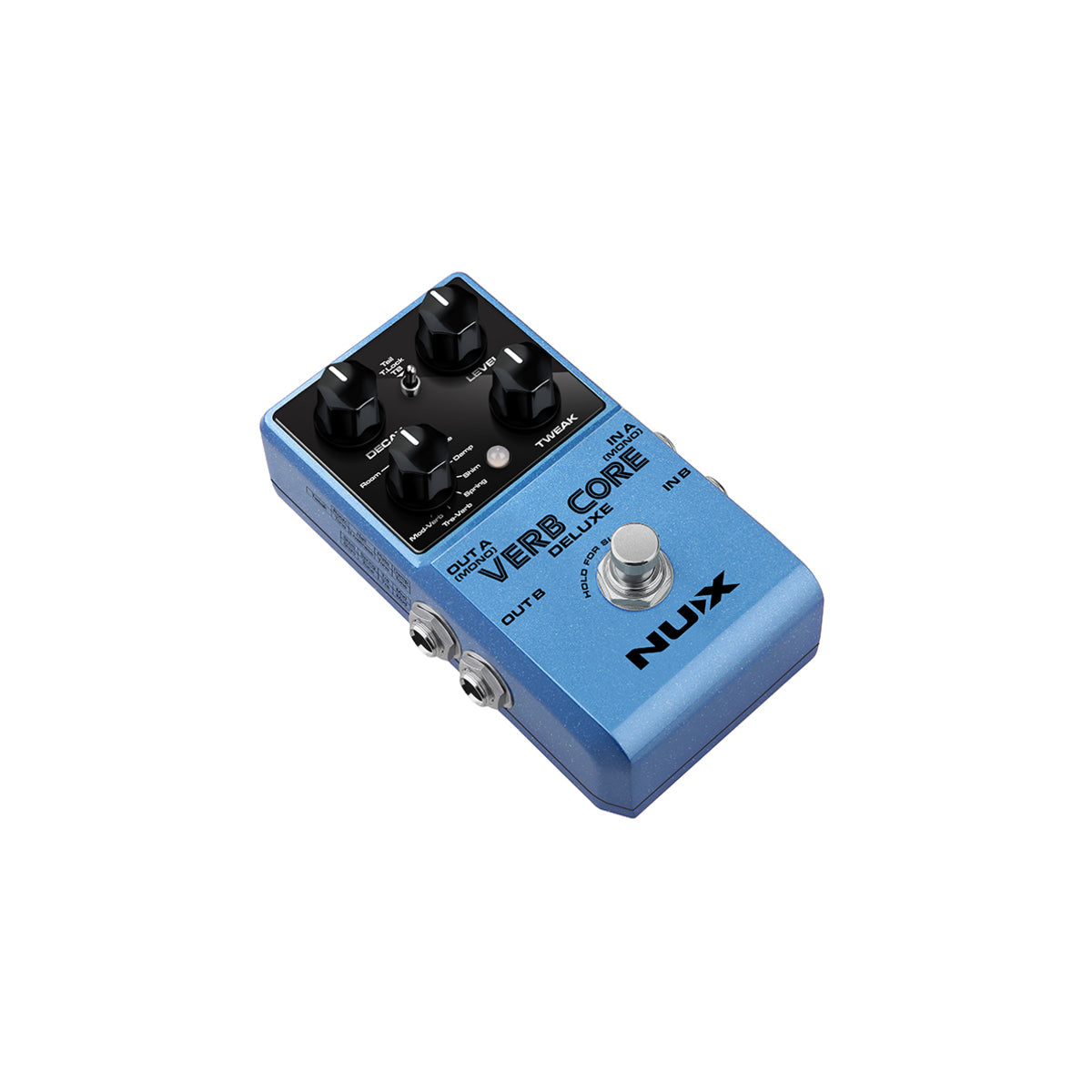

The NUX VERB CORE DELUXE is a reverb pedal with 8 different types including Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb and Mod Verb. You can select the reverb type by using the Type knob.

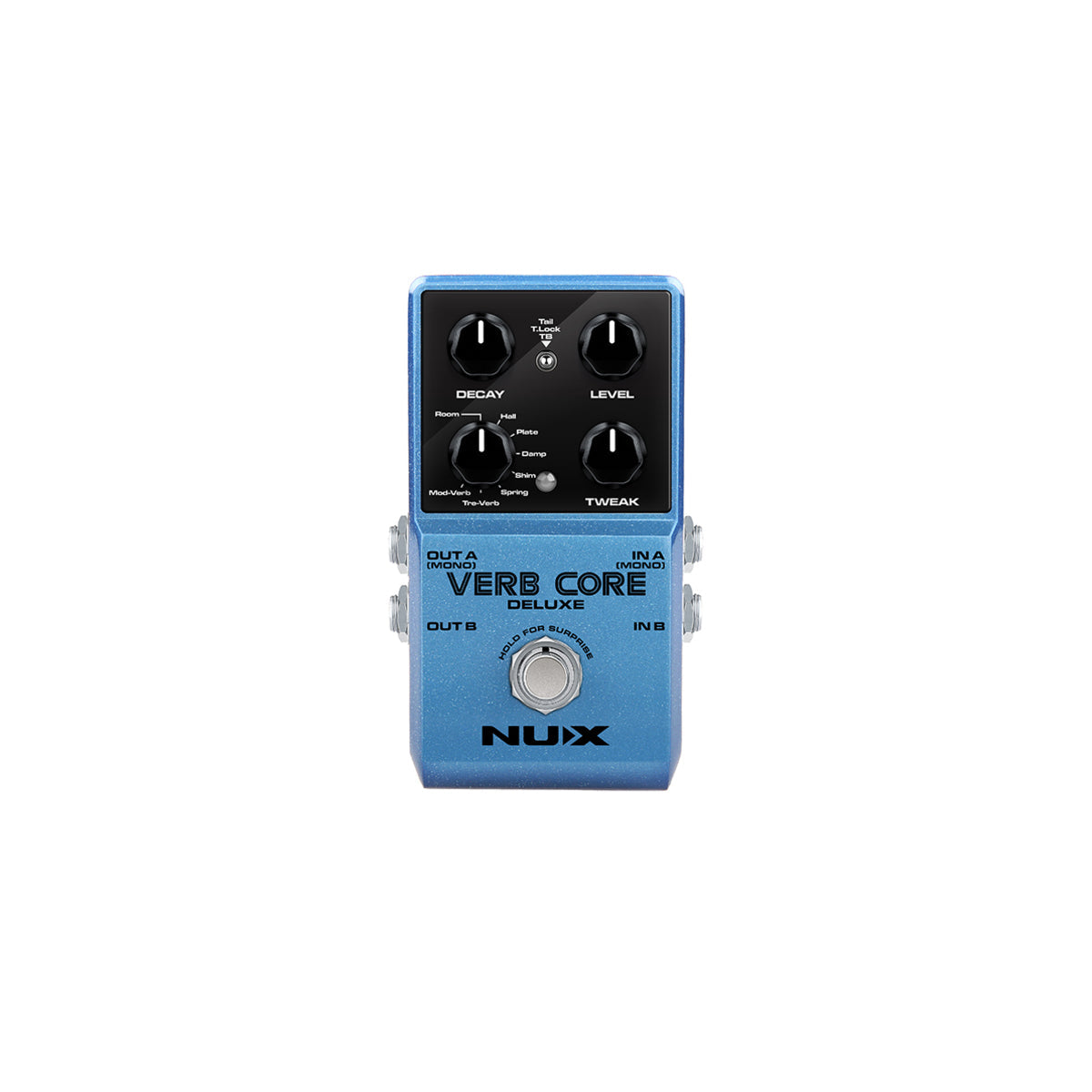

User Interface

• Decay knob: Adjusts the length of reverb time.
• Level knob: Adjusts the wet/dry mixing level of reverb, from 0% up to 100% when you turn the knob clockwise.
• Reverb Type knob: Selects the Reverb type.
• Tweak knob: Adjusts a specific parameter for each reverb type.
• Toggle switch: The Toggle switch is used to go between True/Buffer Bypass and our unique Tone Lock feature. Select Tail to set the pedal to Buffer-Bypass to keep the reverb spillover while you disengage the effect. TB means True-Bypass, there is no spillover while you disengage the effect. T.Lock means Tone Lock. The T.Lock (Tone Lock) function is a quick way to store and lock your current parameter setting to prevent accidents while on stage. After you set the parameters, just toggle the switch to T.Lock position, then the LED indicator will flash GREEN 2 times to store and lock the parameters. Then you can engage or disengage the effect by the footswitch worry free.
• FOOTSWITCH & FS INDICATOR: Press once to engage/disengage the effect. While you engaged the effect, press and hold the footswitch can trigger Freeze function. (Hold For Surprise)

  While the effect is engaged, the FS indicator will show “Red”. While the effect is disengaged, the FS indicator will turn off.

Kill Dry: This function allows you to get fully proceed signals without any dry signals, so you are able to get pure dry amp sound and pure wet amp sound with paralleled gear chain. Or to reach a new level of ambiance effects if the original mixing is just not enough for your ideas.

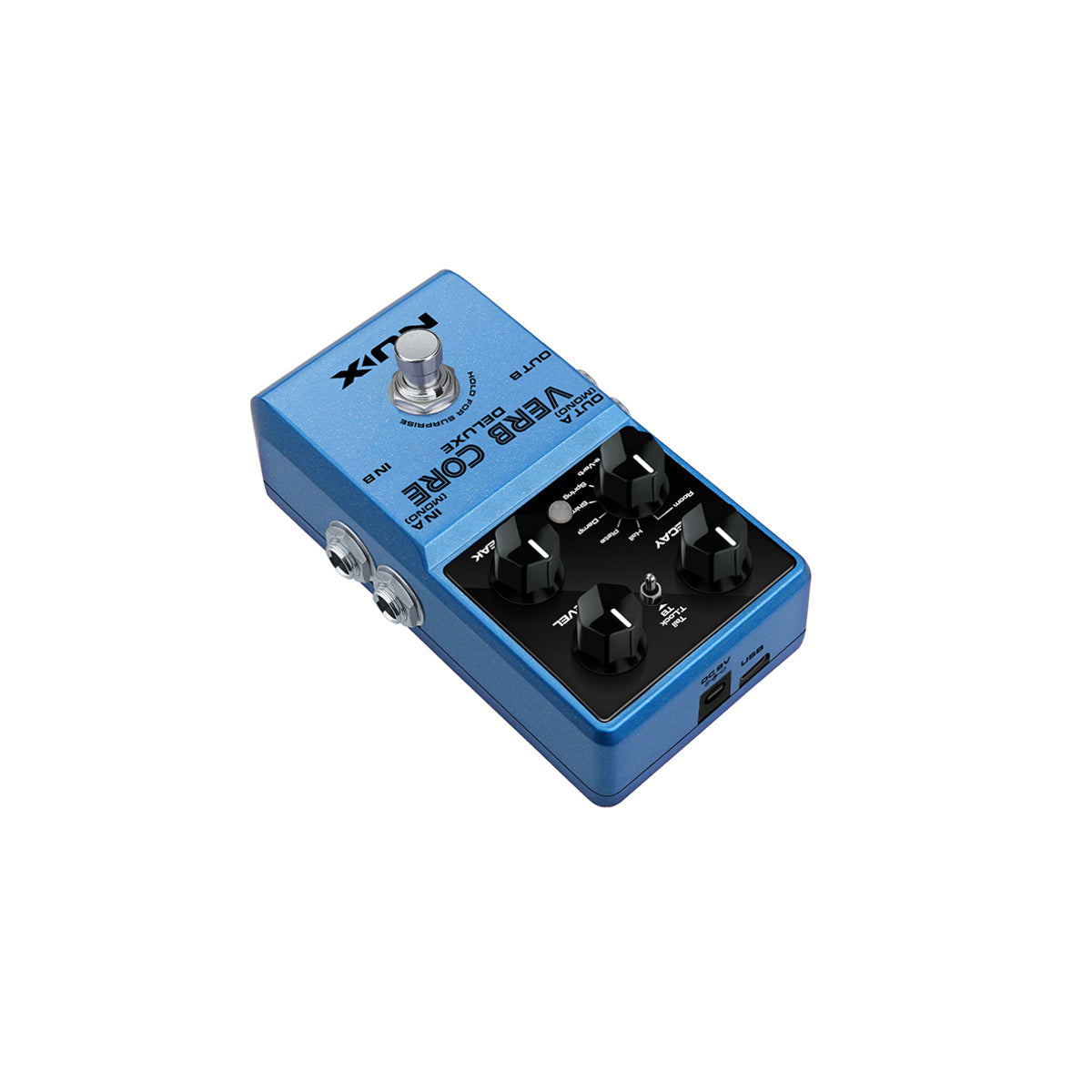

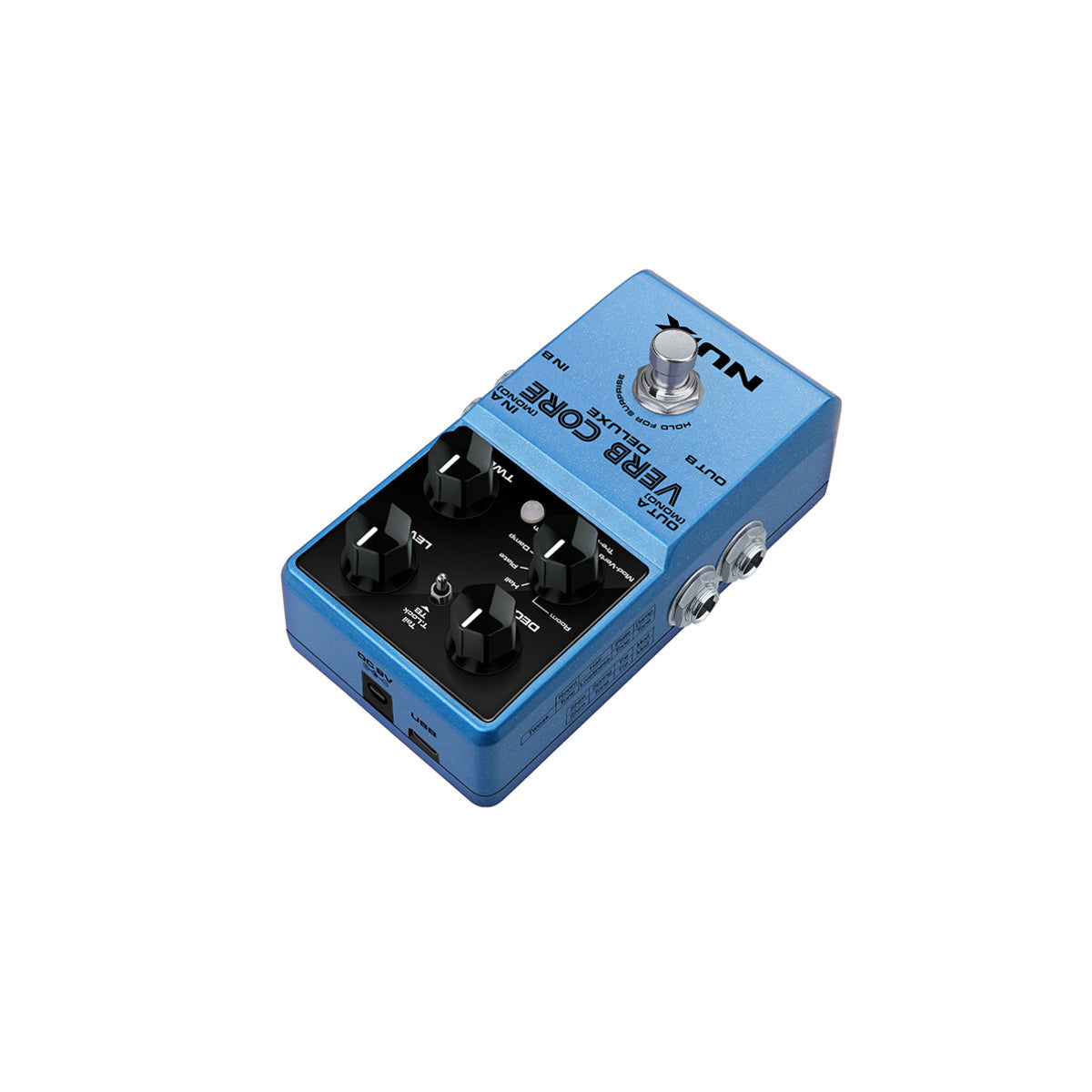

DC jack: Use ONLY: 9V Negative Tip power with more than 150mA. (The power consumption is less than 110mA.)

USB-C port: The USB-C port is for firmware updates. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can perform firmware updates using DFU updater software.

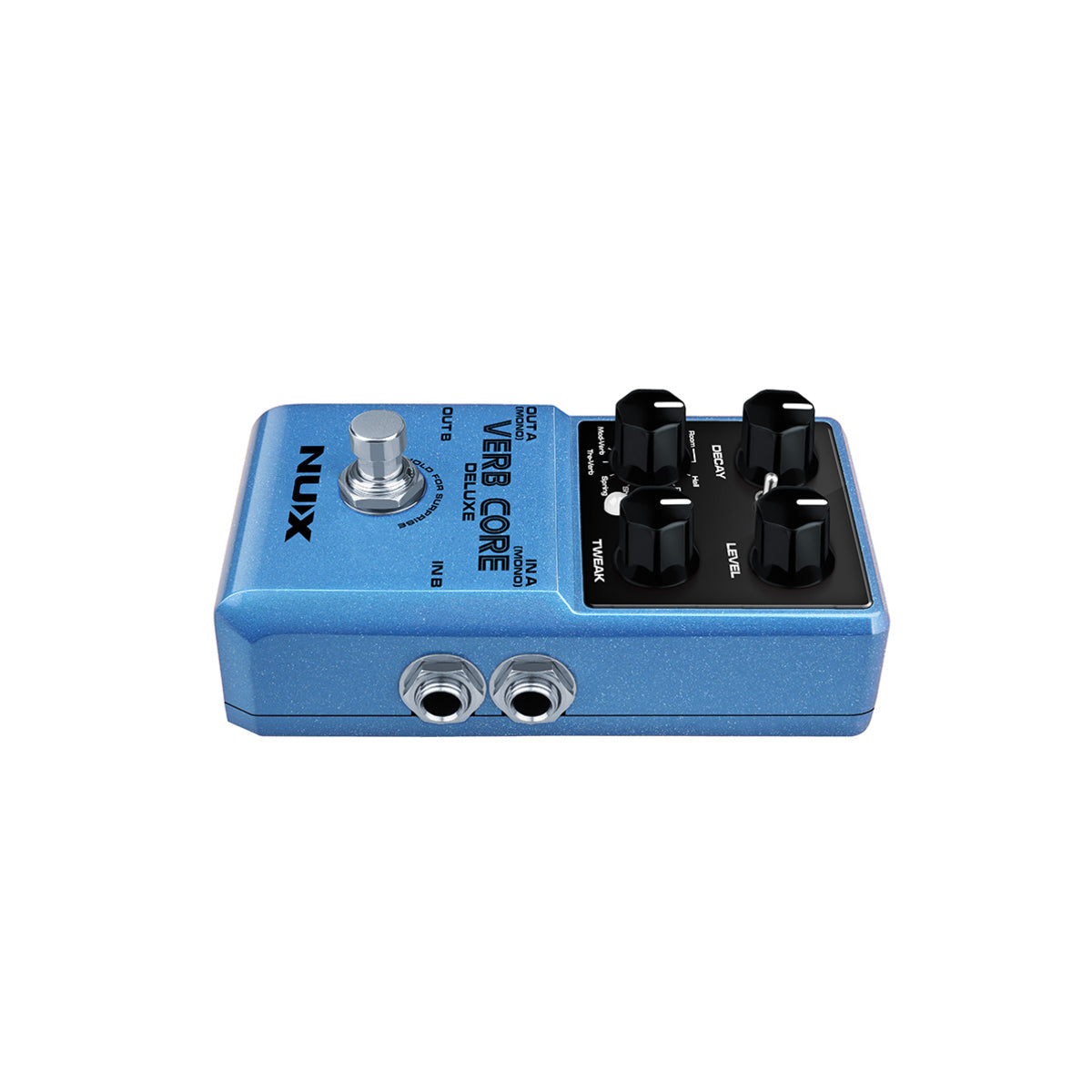

In jacks: The audio inputs on the right side of this pedal are standard 1/4" jacks (mono/TS). Connect your guitar to the In (mono) audio input on the right side of your pedal using a regular 1/4" instrument cable.

The pedal also accepts stereo signals using a pair of 1/4" TS cables, to provide a TURE STEREO output.

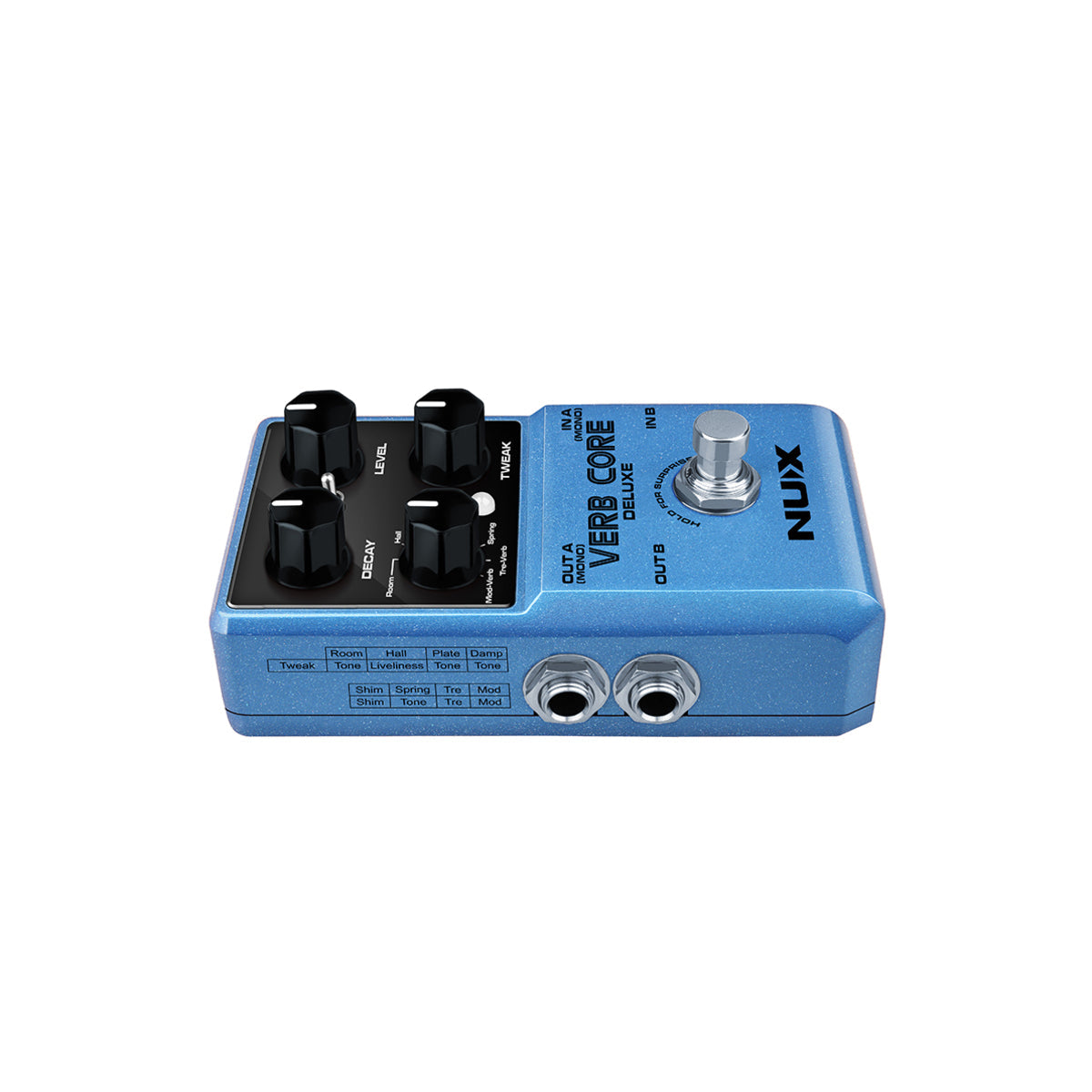

Out jacks: The audio outputs on the left side of this pedal are standard 1/4" jacks (mono/TS). Connect the audio output of your pedal to the next device in the signal chain, either with a single cable or with a pair of 1/4" cables if both inputs are used.

Connections

1. To the amp’s input.
2. In the amp’s FX loop.

If the amp’s FX loop is parallel, you will need to engage Kill Dry.

Kill Dry: Without the USB connection, hold the footswitch to boot-up the pedal, if the LED indicator flashes GREEN 3 times, the KILL DRY is engaged. If the LED indicator flashes RED 3 times, the KILL DRY is disengaged. (Normal)

Features:

• 8 reverb types in a compact enclosure.
• Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb, Mod-Verb.
• Freeze function.
• True-bypass or Buffer-bypass(Tails).
• Supports Stereo.
• Kill Dry.
• Low power consumption. (less than 120mA)
• Analog dry signal for low noise and zero latency.
